BS EN 10216-2 P235GH

EN 10216-2 Seamless steel tubes for pressure purposes – Technical delivery conditions – part 2: Non- alloy and alloy steel tubes with specified elevated temperature

This Part of EN10216 specifies the technical delivery conditions in two categories for seamless tubes of circular cross section, with specified elevated temperature properties, made of non-alloy and alloy steel.

Steel Grade: P235GH  Steel Number: 1.0345

Chemical composition (cast analysis)a, in % by mass

C: ≤0.16

Si: ≤0.35

Mn: ≤1.20

P max: 0.025

S max: 0.020

Cr:≤0.30

Mo: ≤0.08

Ni: ≤0.30

Al total: ≥0.020b

Cu: ≤0.30 c

Nb: ≤0.010d

Ti: ≤0.040d

V: ≤0.02d

Cr+Cu+Mo+Ni: ≤0.70

a Elements not included in this Table shall not be intentionally added to the steel without the agreement of the purchaser, except for elements which may be added for finishing the cast. All appropriate measures shall be taken to prevent the addition of undesirable elements from scrap or other materials used in the steel making process.

b This requirement is not applicable provided the steel contains a sufficient amount of other nitrogen binding elements which shall be reported. When using titanium, the producer shall verify that (Al+Ti/2)≥0.020%.

c Option : In order to facilitate subsequent forming operations, an agreed maximum copper content lower than indicated and an agreed specified maximum tin content shall apply.

d The content of these elements need not to be reported unless intentionally added to the cast.

Heat treatment:

Normalizing includes normalizing forming

Temperature: 880 – 940 ℃

Cooling medium: air

Mechanical properties

Tensile properties at room and below room temperature

Upper yield strength or proof strength ReH or RP0.2 for Wall Thickness T min.

Wall thickness mmMpa
T ≤16235
16<T≤40225
40<T≤60215

Tensile Strength, Rm, Mpa: 360 to 500

Elongation A, min. %:

Longitudinal: 25

Transverse: 23

Impact properties(option):

Minimum average absorbed energy KV J

temperatureLongitudinalTransverse
04027
-1028

Minimum proof strength Rp0.2 Mpa at elevated temperature ℃(option)

Wall thickness, mm: ≤60

 Temperature Mpa
100198
150187
200170
250150
300132
350120
400112
450108

Tolerance on outside diameter and wall thickness

For outside diameter: ±1% or 0.5mm whichever is the greater

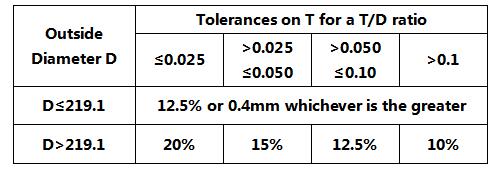

For wall thickness:

For outside diameter D≥355.6 mm it is permitted to exceed the upper wall thickness locally by a further 5% of the wall thickness T

Tolerance on exact lengths

Length LTolerance on exact length
L ≤ 60000, +10
6000<L ≤120000, +15
L>120000, by agreement
